UL3386 Crosslinked Wire

Product description:
 Rated temperature: 105°C.
 Rated voltage: 600 volts.
 Tinned or bare, stranded or solid copper conductor, 30-4/0 AWG.
 Color-coded halogen free XLPE insulation, and RoHS compliant.
 Passes UL horizontal flame test.
 Reference standard: UL 758 & UL 1581.
 Uniform thickness of wire to ensure easy stripping and cutting.

Applications:
For internal wiring of appliances.

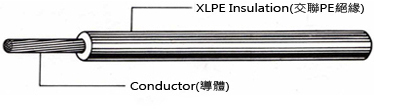

Construction:
P/N
Conductor

導體
Insulation

絕緣
Overall
Diameter
完成外徑
Standard
Put-up
標準長度
AWG
線號
No./mm
線數/線徑
Material
材質
Thickness
厚度/mm
mm
ft./Coil
英制
m/Coil
公制
3386-22
22
17/0.160
XLPE
0.76
2.40
2000
610
3386-20
20
21/0.180
XLPE
0.76
2.60
2000
610
3386-18
18
34/0.180
XLPE
0.76
2.80
2000
610
3386-16
16
26/0.254
XLPE
0.76
3.20
1000
305
3386-14
14
41/0.254
XLPE
0.76
3.60
1000
305
3386-12
12
65/0.254
XLPE
0.76
4.10
1000
305
3386-10
10
105/0.254
XLPE
0.76
4.80
1000
305
3386-08
 8
168/0.254
XLPE
1.15
6.40
500
152
3386-06
 6
266/0.254
XLPE
1.52
8.60
300
192
