UL10369 Crosslinked Wire

Product description:
 Rated temperature: 105°C.
 Rated voltage: 600 volts.
 Tinned or bare, stranded or solid copper conductor, 28-9 AWG.
 Color-coded halogen free XLPE insulation, and RoHS compliant.
 Passes UL horizontal flame test.
 Reference standard: UL 758 & UL 1581.
 Uniform thickness of wire to ensure easy stripping and cutting.

Applications:
For internal wiring of appliances where exposed to temperature not exceeding 105°C.

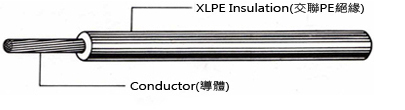

Construction:
P/N
Conductor

導體
Insulation

絕緣
Overall
Diameter
完成外徑
Standard
Put-up
標準長度
Conductor
Resistance
導體電阻
AWG
線號
No./mm
線數/線徑
Material
材質
Thickness
厚度/mm
mm
ft./Coil
英制
m/Coil
公制
at 20°C
Ω/kft.
10369-28
28
7/0.127
XLPE
0.51
1.50
2000
610
72.80
10369-26
26
7/0.160
XLPE
0.51
1.60
2000
610
45.80
10369-24
24
11/0.160
XLPE
0.51
1.70
2000
610
28.70
10369-22
22
17/0.160
XLPE
0.51
1.90
2000
610
18.10
10369-20
20
21/0.180
XLPE
0.51
2.05
2000
610
11.20
10369-18
18
34/0.180
XLPE
0.51
2.30
2000
610
7.06
10369-16
16
26/0.254
XLPE
0.51
2.60
2000
610
4.45
10369-14
14
41/0.254
XLPE
0.51
3.00
2000
610
2.73
10369-12
12
65/0.254
XLPE
0.51
3.60
1000
305
1.72
10369-10
10
105/0.254
XLPE
0.51
4.20
1000
305
1.08
