UL3289 Crosslinked Wire

Product description:
 Rated temperature: 150°C.
 Rated voltage: 600 volts.
 Tinned or bare, stranded or solid copper conductor, 30-4/0 AWG.
 Color-coded XLPE insulation, and RoHS compliant.
 Passes UL horizontal flame test.
 Reference standard: UL 758 & UL 1581.
 Uniform thickness of wire to ensure easy stripping and cutting.

Applications:
For use as Motor leads or internal wiring of appliances.

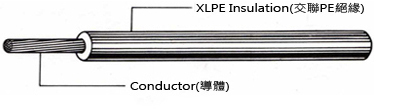

Construction:
P/N
Conductor

導體
Insulation

絕緣
Overall
Diameter
完成外徑
Standard
Put-up
標準長度
Conductor
Resistance
導體電阻
AWG
線號
No./mm
線數/線徑
Material
材質
Thickness
厚度/mm
mm
ft./Coil
英制
m/Coil
公制
at 20°C
Ω/kft.
3289-28
28
7/0.127
XLPE
0.76
2.00
2000
610
72.80
3289-26
26
7/0.160
XLPE
0.76
2.10
2000
610
45.80
3289-24
24
11/0.160
XLPE
0.76
2.20
2000
610
28.70
3289-22
22
17/0.160
XLPE
0.76
2.40
2000
610
18.10
3289-20
20
21/0.180
XLPE
0.76
2.60
2000
610
11.20
3289-18
18
34/0.180
XLPE
0.76
2.80
2000
610
7.06
3289-16
16
26/0.254
XLPE
0.76
3.20
1000
305
4.45
3289-14
14
41/0.254
XLPE
0.76
3.60
1000
305
2.73
3289-12
12
65/0.254
XLPE
0.76
4.10
1000
305
1.72
3289-10
10
105/0.254
XLPE
0.76
4.80
1000
305
1.08
3289-08
 8
168/0.254
XLPE
1.15
6.40
500
152
0.680
3289-06
 6
266/0.254
XLPE
1.15
7.80
400
122
0.428
