UL20029 Flat Ribbon Cable

Product description:
 Rated temperature: 105°C.
 Rated voltage: 300 volts.
 Tinned or bare, stranded copper conductor, 36-16 AWG.
 Lead free PVC insulation, and RoHS compliant.
 Passes UL VW-1 vertical flame test.
 Reference standard: UL 758 & UL 1581.

Applications:
For internal wiring of appliances.

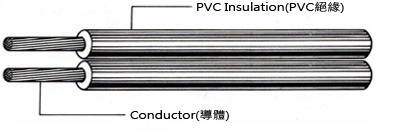

Construction:
P/N
Conductor

導體
No. of Cores
芯數
Insulation

絕緣
Overall
Diameter
完成外徑
Conductor
Resistance
導體電阻
AWG
線號
No./mm
線數/線徑
Material
材質
Thickness
厚度/mm
mm
at 20°C
Ω/kft.
20029-22-2
22
17/0.160
2
PVC
0.23
1.30 X 2.60
16.70
20029-20-2
20
21/0.180
2
PVC
0.23
1.50 X 3.00
10.50
20029-18-2
18
34/0.180
2
PVC
0.23
1.80 X 3.60
6.64
20029-16-2
16
26/0.254
2
PVC
0.23
2.10 X 4.20
4.18
