| UL1007 Hook-up Wire Product description:  Rated temperature: 80°C. Rated voltage: 300 volts. Tinned or bare, stranded or solid copper conductor, 32-16 AWG. Color-coded lead free PVC insulation, and RoHS compliant. Passes UL VW-1 & CSA FT1 vertical flame test. Reference standard: UL 758, UL 1581 & CSA C22.2 No.210. Uniform thickness of wire to ensure easy stripping and cutting. Resistant to acids, oils, alkalies, moisture, and fungus.Applications: For internal wiring of electronic and electrical equipment. |

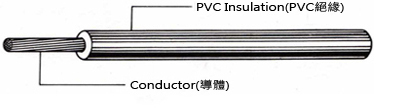

Construction: |
P/N |
Conductor 導體 |
Insulation 絕緣 |
Overall Diameter 完成外徑 |
Standard Put-up 標準長度 |
|||
AWG 線號 |
No./mm 線數/線徑 |
Material 材質 |
Thickness 厚度/mm |
mm |
ft./Coil 英制 |
m/Coil 公制 |
|
1007-22 |
22 |
17/0.160 |
PVC |
0.38 |
1.60 |
2000 |
610 |
1007-20 |
20 |
21/0.180 |
PVC |
0.38 |
1.80 |
2000 |
610 |
1007-18 |
18 |
34/0.180 |
PVC |
0.38 |
2.10 |
2000 |
610 |
1007-16 |
16 |
26/0.254 |
PVC |
0.38 |
2.40 |
2000 |
610 |
